The transition plate is designed to provide a smooth transition
between the gangway and the float it sits on, eliminating
the 3 ½” step up. Designed for handicapped accessibility,
the transition plate is also useful for hand carts or simply foot traffic.
The standard transition plate is 18” in length.

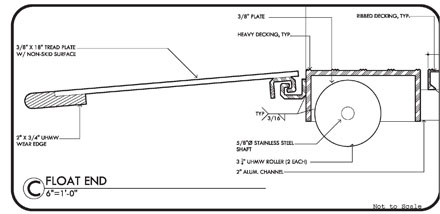

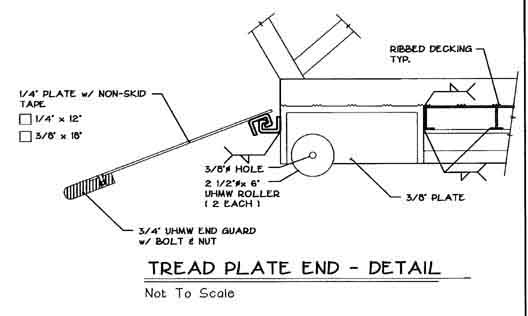

»Transition Plate Shop Drawings

Also available in 24”, 36”, 42” or 48” lengths at additional costs.

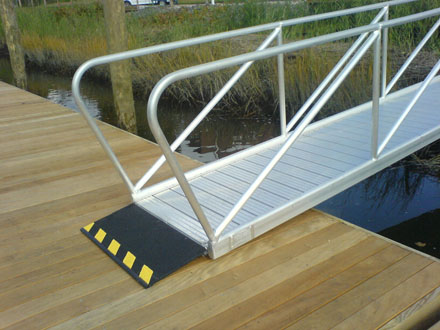

transition plate

The transition plates were designed so that
at the most extreme tides or angles, the aluminum
gangway will not touch the float.
